Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring

Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring
Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring

Büyük resim :  Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring

Ürün ayrıntıları:
Menşe yeri: SHENZHEN ÇİN
Marka adı: Phenson
Sertifika: CE/ROHS FCC
Model numarası: led daire yüzük
Ödeme & teslimat koşulları:
Min sipariş miktarı: 1 adet
Ambalaj bilgileri: karton 530x420x280mm, 40 adet/karton GW 19KG
Teslim süresi: 2-3 gün
Ödeme koşulları: Banka havalesi, Western Union, paypal
Yetenek temini: 10000 adet
Detaylı ürün tanımı
Ürün Adı: WS2812B/SK6812 led daire halkası Renk: RGB
Çalışma voltajı: 5VDC IC tipi: WS2812B/SK6812
Boyut: 2mm 32mm 52mm 72mm 92mm 112mm Başvuru: arka ışıklar, dolap ışıkları, kenar ışığı,

Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring





Circle Led Ring Specification

Model WS2812B-1leds 8leds 12leds 16leds 24leds 32leds
Voltage DC5V
Power 0.3W 2.4W 3.6W 4.8W 7.2W 9.6W
Led Color RGB,also can use the controller to reach many knids of effect
Inner Diameter / 16mm 36mm 56mm 76mm 96mm
Outer Diameter 12mm 32mm 52mm 72mm 92mm 112mm
Waterproof IP20,no waterproof
Installation Double outlet-100mm,use the screw to installation.





WS2812B/SK6812 Led Ring Light

-Use the WS2812B/SK6812 IC driver,can change many effects through led controller.

-1-32leds is a pack,also can sell only one size.

-Led Ring can use in Car led head light,the mirror light,and so on.



Application

1. lights, back lights, cabinet lights, edge light, architectural lights for corridor, canopy, archway, lights for path
and contour marking; etc.



They can be a good choice for lights for hotels, restaurants, night clubs, coffee / wine bars, shopping malls,
various shops, cinemas, beauty centers, office fronts, even lights for household kitchens or living rooms, etc.






Product Details

WS2812B/SK6812 led ring size

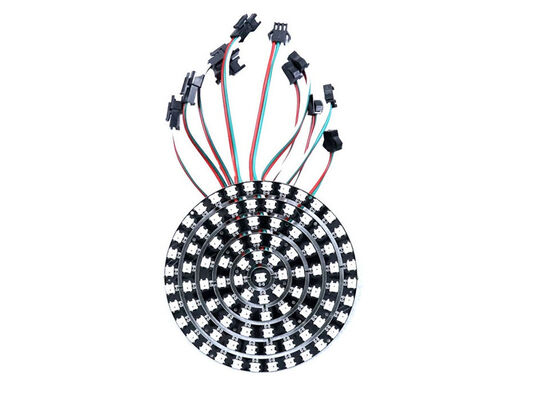

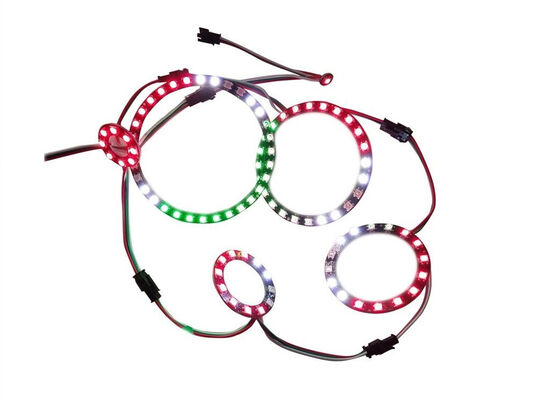

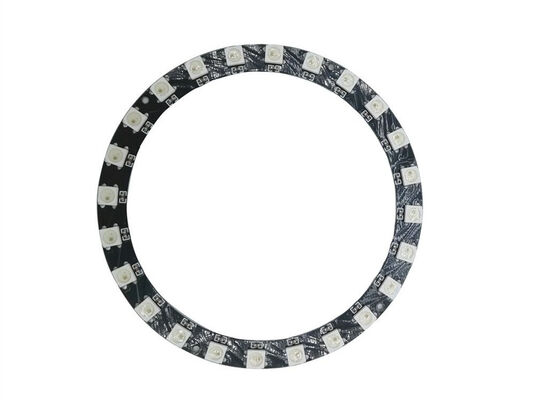

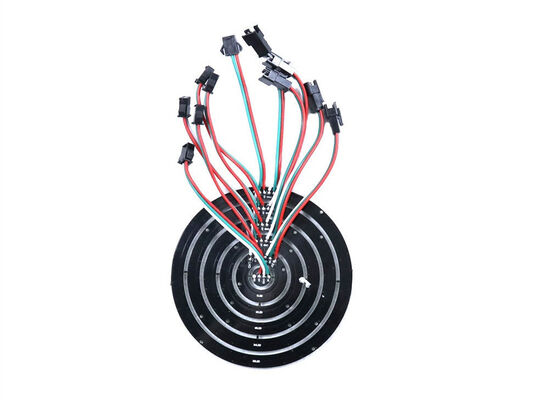

Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring 0

Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring 1



Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring 2



Digital Full Color RGB WS2812 SK6812 IC Pixel DC5V Circle Led Ring 3
